1. What is led transparent screen?

Transparent led display, as the name suggests, is "transparent" as the biggest feature. The transparent led display can be very naturally attached to the glass, attached to the glass keel, is its best companion. When the screen body is not lit, it hardly affects the overall appearance design and the transparent lighting of the building; After lighting, the glass becomes an transparent led display, which can play pictures and videos, and the color is gorgeous, the picture is realistic, and it has a light 3D effect. The perfect combination of high technology and artistry makes the transparent led display highly favored.

2.How many kinds of transparent led screen？

(1) Hard light strip transparent led screen.

Hard light bar transparent led screen, permeability of about 60-80%, hard light bar transparent led screen is the mainstream of the current market, hard light bar transparent led screen products, technology and supply chain are more mature, mainly considering the display manufacturers on the supply chain strict selection and manufacturing cost control, while designers and users are concerned about simple, friendly, cost-effective characteristics. For example, in the field of digital stage beauty has always paid attention to the interpretation of beauty, and in the case of traditional LED display is difficult to get an update breakthrough, transparent display has brought a new trend to the stage. The hard light strip transparent led screen can display the corresponding content when it is lit, and can be "invisible" when it is not lit. Such a hard light strip transparent led screen is perfect for the changeable stage. This year, the application of LED transparent screen in digital stage beauty is even more impressive. The use of high transparent LED transparent screen to create a dreamlike, cool and changeable style, so that the light and the picture integrated, to create a vivid visual feast.

(2) Flexible LED film transparent screen.

Flexible LED film transparent screen, can be attached and hung, ultra-thin and light. Flexible LED film screen can be flexibly cut and mounted on curved surface according to the structure size. LED film transparent screen is mainly used in commercial complexes, atriums, sightseeing elevators, glass fences and other places, as well as many glass walls that did not originally have the installation conditions.

(3) Photoelectric glass led transparent screen.

Photoelectric glass led transparent screen, using the combination of photoelectric technology and glass technology, can be widely used in building curtain wall, window, exhibition hall, museum and other scenes. Photoelectric glass led transparent screen permeability can reach 90%, can break through 5500nits of high brightness (industry average 2000-45000nits) using IMD package design, no excess chip components. Photoelectric glass led transparent screen lamp beads are customized with small size, the screen surface is cleaner, and the lamp adhesion can be increased by 30%. 3mm tempered glass, on the basis of achieving a balance between strong and light, can also be cut arbitrarily like glass, to meet more diverse creative buildings and Windows, and truly let transparency return to the essence.

3. What are the characteristics of the transparent screen ?

(1) High transparency / no space / light weight.

Transparent led screen has a very high perspective, with 60% - 95% transmittance, which ensures the lighting requirements and perspective range of lighting structures such as floors, glass facades and windows, and ensures the original lighting perspective function of glass curtain wall.

The thickness of the transparent led screen is only 8cm, and the weight of the screen is only 15kg / ㎡ .

(2) No steel frame structure / unique display effect.

Transparent led screen without steel frame structure, save a lot of installation and maintenance costs. Fixed directly on the glass curtain wall.

Because the led display background is transparent, the advertising picture can give people the feeling of floating on the glass curtain wall, with good advertising effect and artistic effect.

(3) Easy maintenance /energy saving and environmental protection.

Transparent led screen indoor maintenance is fast, fast and safe, saving manpower and material resources. Transparent led screens do not require traditional cooling systems and air conditioning cooling. 35% energy saving than ordinary LED display.

(4) Indoor Installation/Outdoor Viewing.

Transparent led screen is easy to install and maintain indoors, and more secure. Transparent led screen for outdoor viewing without complicated approval process.

(5) Rapid Heat Disspation.

Transparent led screen side view LED packaging technology, high transparency, fast heat dissipation, full screen surface temperature and ambient temperature difference is only about 20% of the traditional LED display

4. What is the difference between led transparent screen and traditional screen?

(1) Transparent screen structure features.

Traditional led screen, the box is relatively heavy, including the box frame, module, heat dissipation and other equipment, relatively heavy, the appearance is conventional, and it is not easy to maintain.

Transparent LED screen, simple structure, aluminum structure plus transparent PC panel, stylish and beautiful appearance. Because the lighting in this province is transparent, there is no need for additional cooling equipment. And no box accessories centralized layout. The weight of the same area size is more than 50% lighter than the traditional display.

(2) Transparent led screen presents the display effect.

Traditional led screen, easy color reduction is not strong, distortion, and color adjustability is not strong. Especially small spacing, easy to mix colors.

Transparent screen, transparent, bright, gorgeous, ultra-high refresh rate display picture floating. Colorful, eye-catching.

(3) Transparent led screen installation and after-sales maintenance.

Traditional led screen, complex structure, heavy quality, installation requires steel structure, if it is fixed wall installation, it will destroy the wall, and outdoor installation has security risks. Later maintenance also requires special operations;

Transparent screen, because transparent, can be installed indoors. The frame is fully equipped with movable lock, convenient installation and easy operation. And the accessory module is not welded dead, the card plug-in change module 1/4 module, gently push from the back of the module, there is no need to remove the module, only need to replace the problem unit parts, simple maintenance and labor saving.

(4) Transparent led screen product specificity.

Traditional led screen, strong resistance, the highest level of protection can be IP67. Soft rubber embedded layout, the minimum spacing can be P0.8, the display effect can reach ultra-high definition.

Transparent led screen, due to the light bead strip bare, and light texture, the highest protection level IP46. Due to the specificity of permeability, the minimum spacing can only be P3, which can only achieve a clear effect.

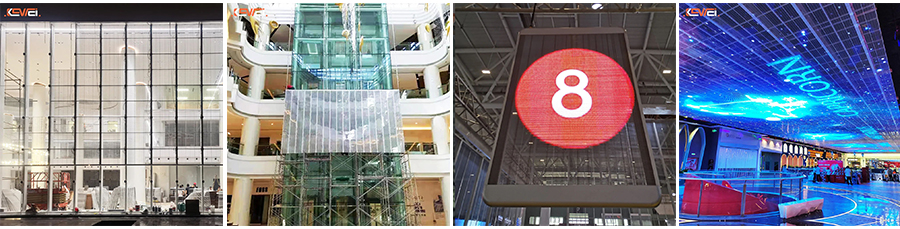

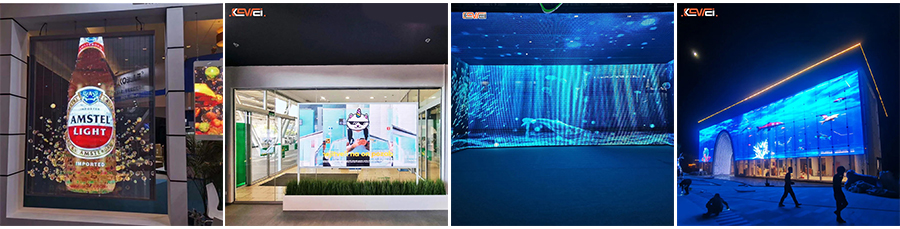

5. What are the applications of transparent screens?

(1) Traditional led screen showcase window.

The transparent led display screen fixed on the building, does not block the shop, famous for HD cool, holographic effect, intelligent interactive function. Transparent led display can meet the urgent needs of stores to attract customers' attention, improve the rate of entry, and improve the shopping experience.

(2) Traditional led screen glass wall.

The transparent led screen is perfectly integrated with the glass curtain wall, does not change the appearance of the building, and has little impact on the transparency and lighting during the day. At night, the colorful picture of the transparent led screen will make the city more romantic and dreamy.

(3) Traditional led screen commercial space.

In airports, high-speed rail stations, subway stations, exhibition centers, hotel theaters, cities and commercial complexes, transparent LED screens provide excellent space atmosphere, perfect integration with structure and design style, creating more visual impact for advertising media.

(4) Traditional led screen stage.

Transparent led screen breaks through the traditional style to create a sense of space.

How to choose a good transparent screen?

(1) Transparent led screen light beads.

LED transparent screen commonly used light beads are mainly divided into "positive light beads" and "side light".

Positive light beads are generally commonly used LED screen light beads; Mature technology, the use of matte process, can inhibit reflection, display color effect is good.

Side light bead for LED transparent screen special; Side pin, UV protection, white frame (increased brightness), higher permeability, high reliability.

(2) Transparent led screen SMD patch mode.

The common transparent led screen patch methods are: SMD positive paste, SMD side paste.

The two patch methods are very mature and stable, and the difference in my opinion is:

SMD stickers are transparent no matter from which Angle, and have an advantage in viewing Angle.

SMD side stickers look more transparent at certain angles, and the permeability of some angles will be blocked by the lamp panel. Dominant in fixed viewing angles.

(3) Transparent led screen profile structure and process.

The selection of transparent led screen frame structure, the most stable profile structure with a frame, suitable for large glass curtain wall. Bezel-less is suitable for small area transparent led display applications within 5 meters. The fastener is only suitable for rental and party scenes. Abnormals must be customized according to the actual situation on the site.

In addition, tempered glass is better than acrylic in durability, and acrylic is better than tempered glass in safety and weight.

(4) Interface selection of transparent led screen.

At present, for the transparent led screen, the best interface standard in the purchase time is HDMI, the interface can simultaneously transmit audio and video signals of the digital interface, not only can simplify the connection, reduce the cable burden, but also can provide a huge digital signal transmission required bandwidth, the future of the disk drive, computer, home theater and other equipment, will actively use this interface, The application of this interface to connect with these devices can undoubtedly obtain the best results.

(5) Transparent led screen for brightness and response time.

The brightness of the transparent led screen is also one of the important elements of our purchase of transparent screens. We can test the transparent led screen from multiple angles. When we buy a transparent led screen, we should look at the transparent screen from multiple angles, such as choosing the screen in the Angle, and then offset some angles, and stand in the same horizontal position with the transparent led screen to see if we can see the image; When testing products, you can also let promoters play some such speed screen, see whether the transparent led screen display action is coherent, whether there is a phenomenon of screen tailing phenomenon is too obvious, it will affect the user's correct judgment on the screen change, but also lead to the image is not clear enough, If the game is played at a high speed, it is possible to miss key scenes because the graphics are not switched at the right time. Therefore, for the response time of the transparent led screen, the shorter the time, the better, the faster the better.

Author: Sily

This article from:http://www.ledtransparency.com/news.html
